Fiber Optical Patch Cables

► Fiber Optical Patch Cables

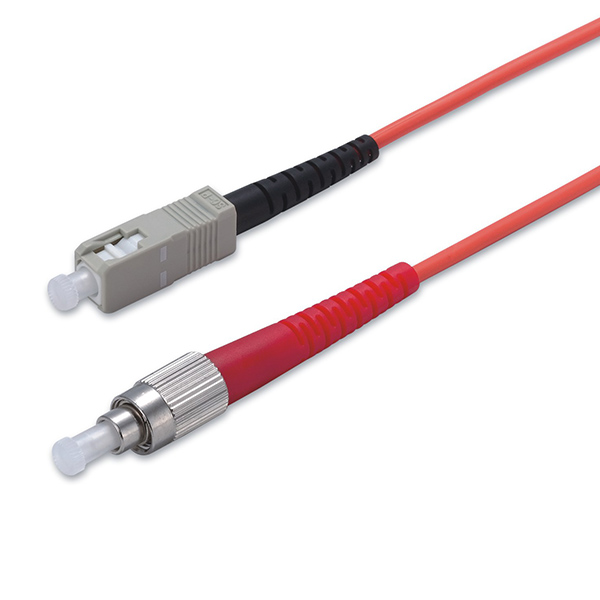

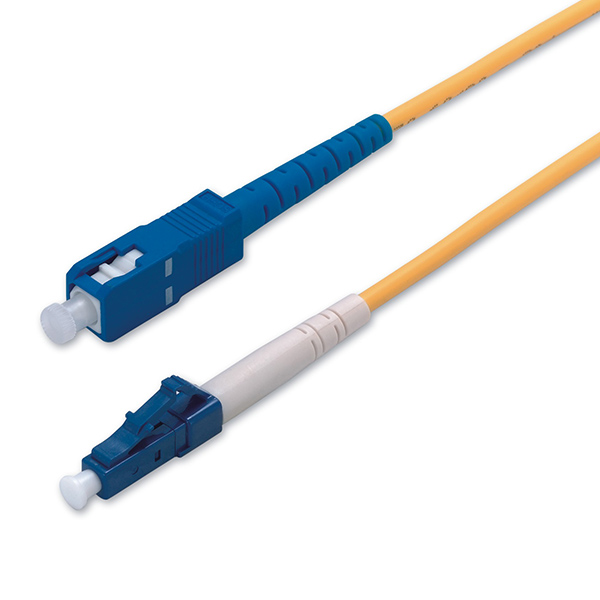

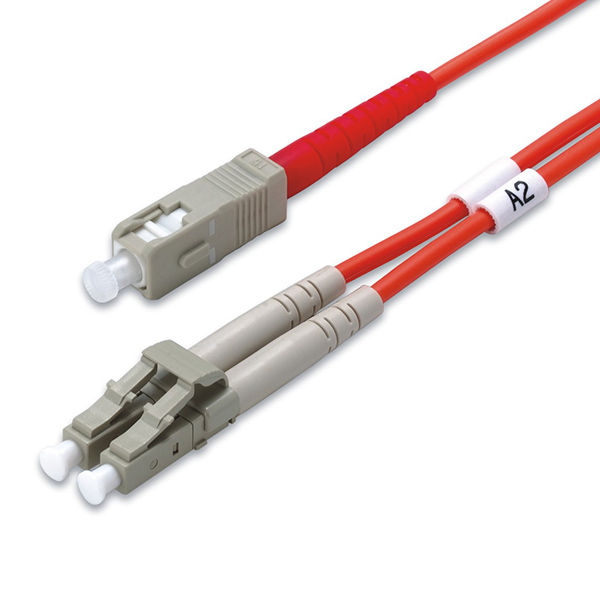

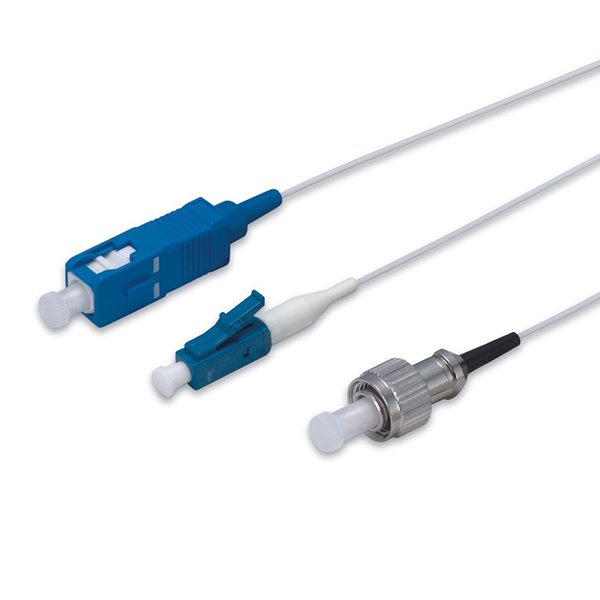

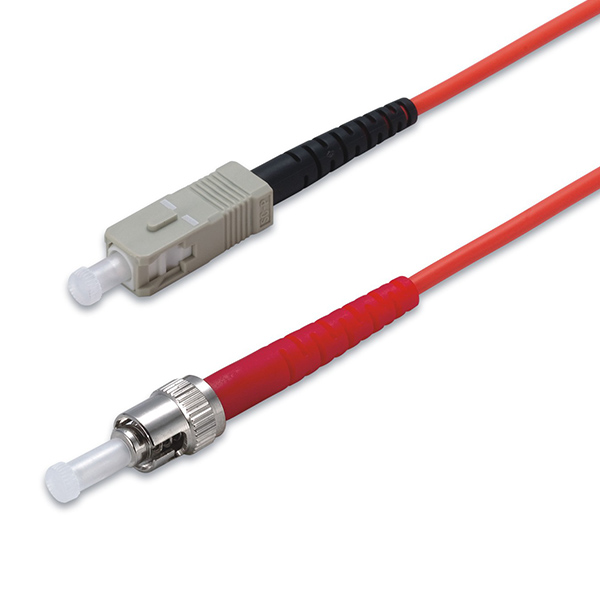

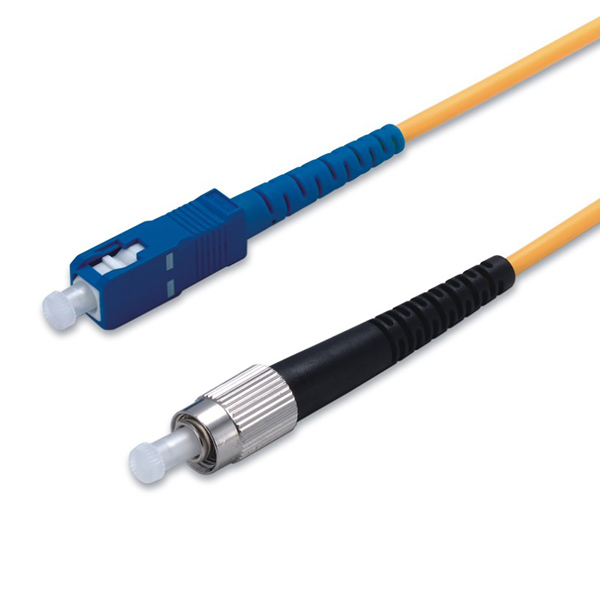

Fiber Optical Connector is a pluggable component between two optical communications equipments, which can align two ends of equipment fibers critically and transmit the maximum optical signal from transmitting terminal fiber to receiving terminal fiber. Type: SC, LC, FC, ST, MU, E2000, MT-RJ.

► Features & Benefits:

1. Low Insertion Loss;

2. High Echo Loss;

3. Wide Operation Temperature;

4. High Stability and Reliability;

5.Telcordia GR-326 Compliance.

6. YD/T-1272 (TLC Product Certificate) Compliance.

► Application:

1. FTTX;
2. Optical Signal Transmission;
3. Telecommunication Application;
4. CATV;
5. Measurement Instruments.

► Specification

type	unit	Insertion Loss		Return Loss
		Multi-Mode	Single-Mode	Multi-Mode	Single-Mode
		Multi-Mode	Single-Mode	Multi-Mode	PC/UPC	APC
SC	dB	≤0.3	≤0.3	≥35	≥50	≥60
LC	dB	≤0.3	≤0.3	≥35	≥50	≥60
FC	dB	≤0.3	≤0.3	≥35	≥50	≥60
ST	dB	≤0.3	≤0.3	≥35	≥50	≥60
MU	dB	≤0.3	≤0.3	≥35	≥50	≥60
E2000	dB	≤0.3	≤0.3	≥55	≥65	≥65
MT-RJ	dB	≤0.5	≤0.75	≥20	≥65	--
MPO	dB	≤0.5	≤0.75	≥20	≥65	--
