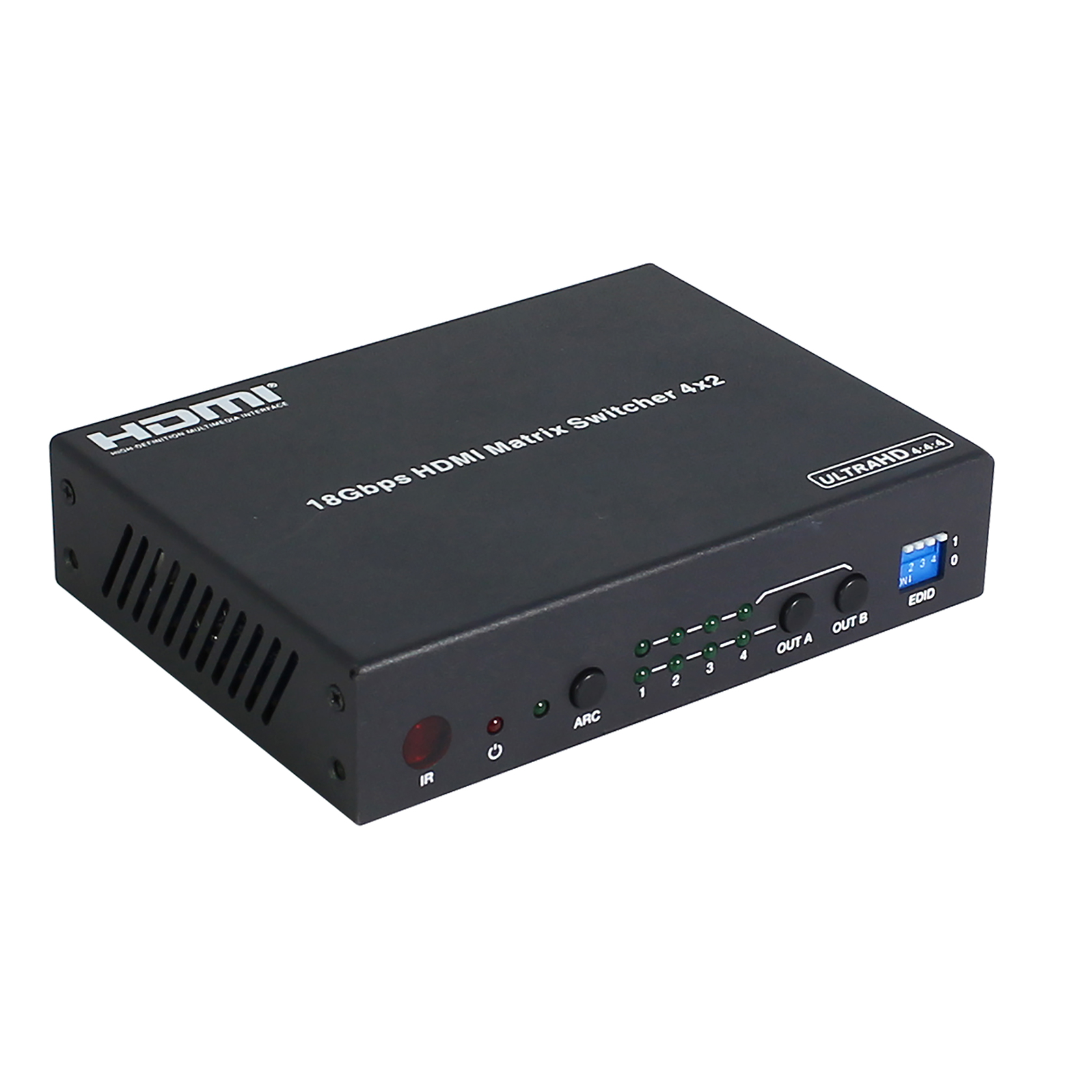

4×2 HDMI 2.0 Matrix Switcher HDM-0402B Series

► Item Description:

The 4x2 HDMI 2.0 HDM-0402B  Series Matrix Switcher simultaneously routes four HDMI sources to two HDMI displays. It supports up to 4K2K@60Hz YCbCr 4:4:4 and HDCP
2.2. Output A supports audio de-embedding to optical and analog L/R outputs. Output B can support 4K to 1080P downscale function automatically if source is 4K but TV only supports up to 1080P. 16 different EDID configurations can meet most of use cases. Flexible control through on-panel buttons, IR control.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

► Features & Benefits:

● HDMI2.0b, HDCP2.2/HDCP1.4 compliant;
● Up to 4K2K@60Hz (4:4:4) on all HDMI ports;
● Supports pass-through audio up to 7.1 channels of High Definition audio(LPCM, Dolby TrueHD, and DTS-HD Master Audio);

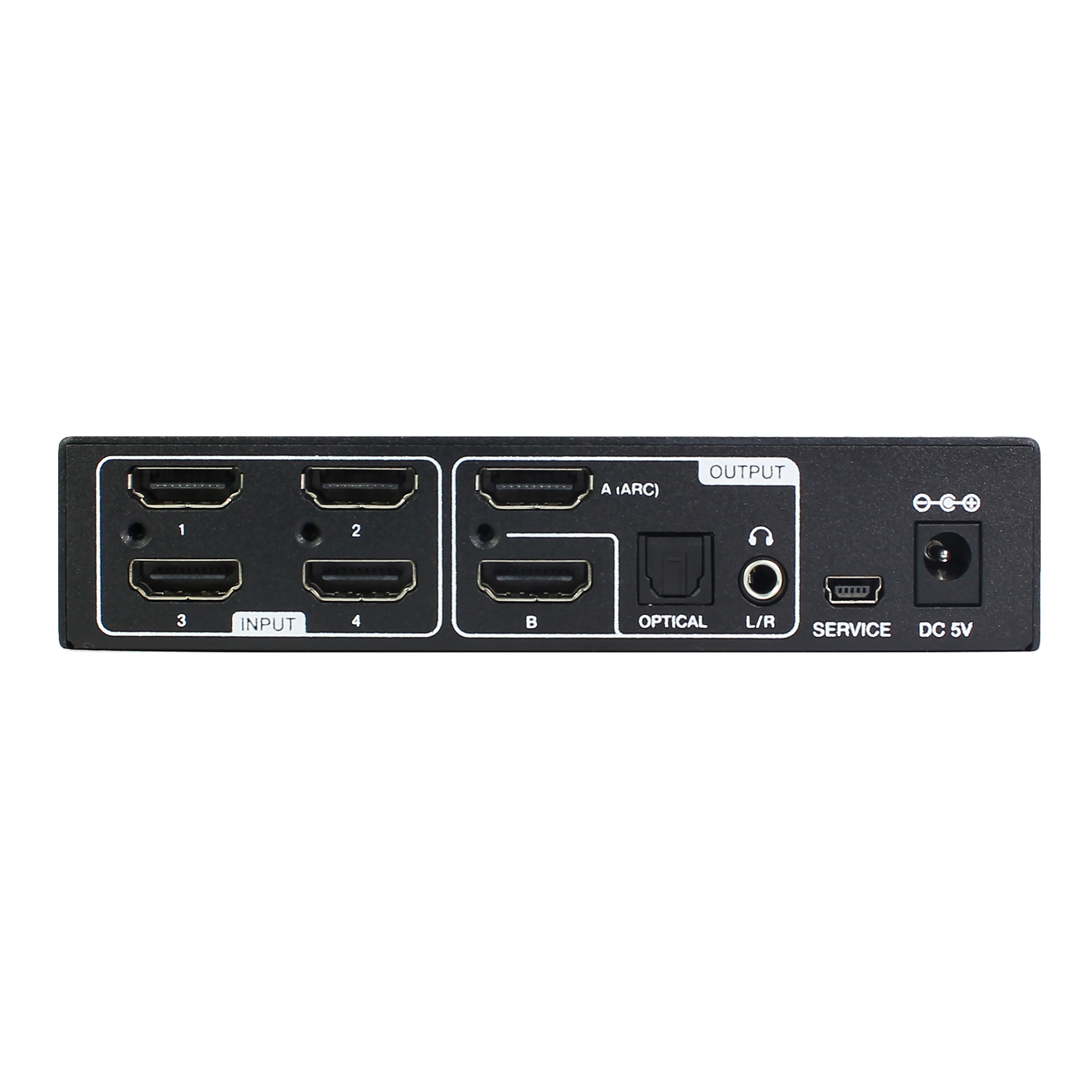

● Out A audio de-embedding to optical and analog L/R out;
● Out B supports 4K to 1080P downscale automatically;
● HDR, ARC, Smart EDID management;

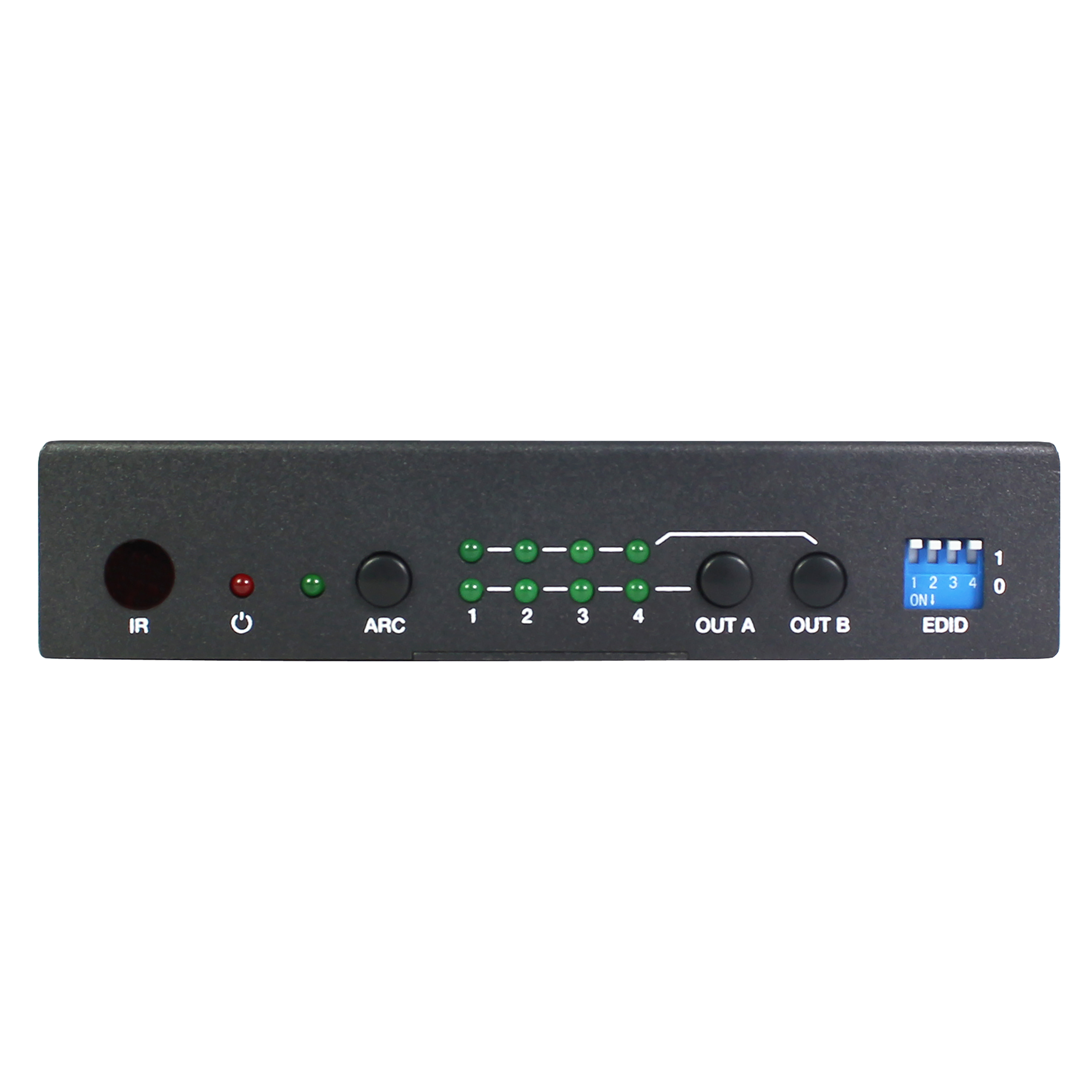

● Control is via on-panel Button and IR.

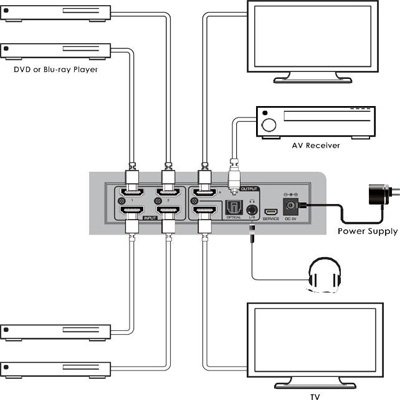

► Application Example:
