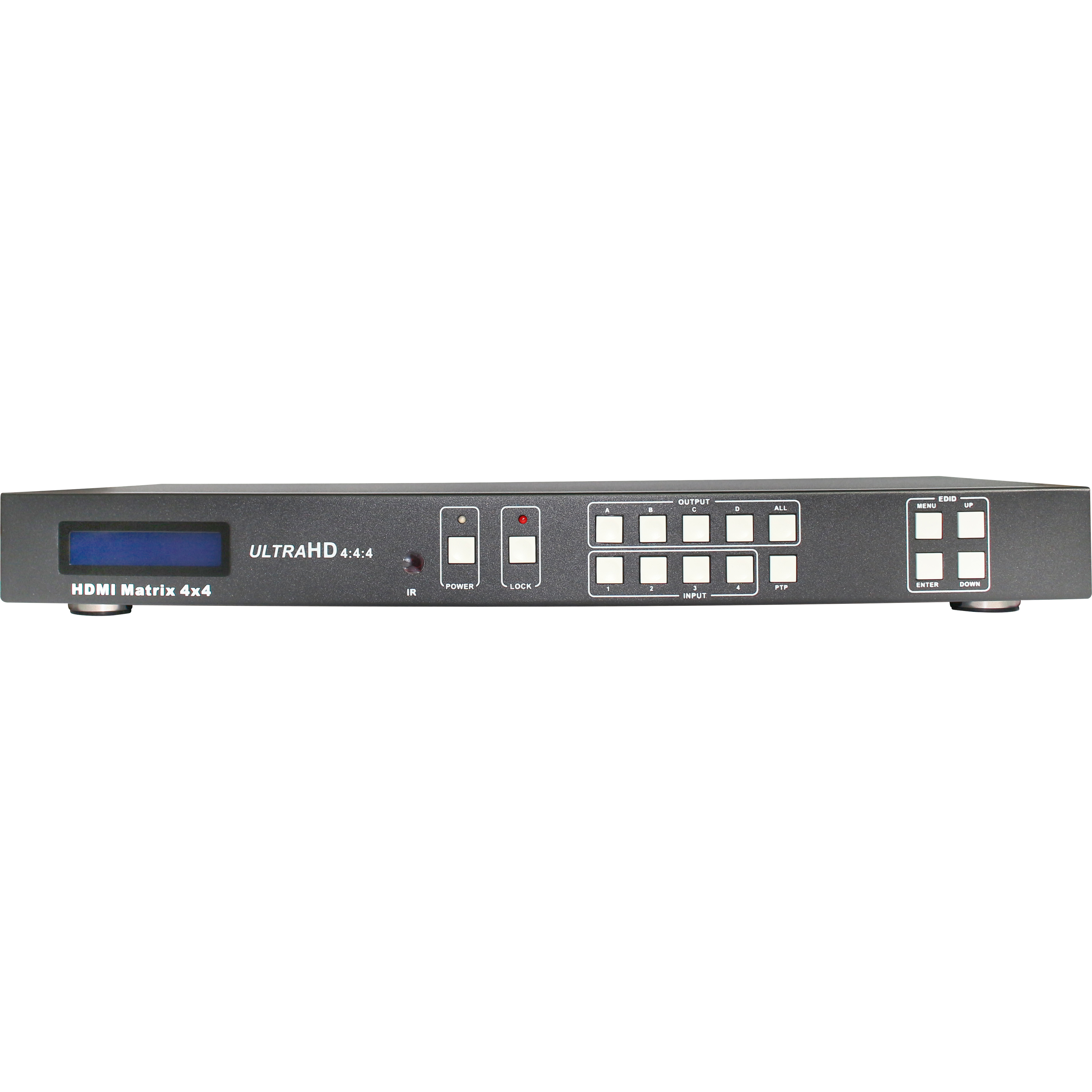

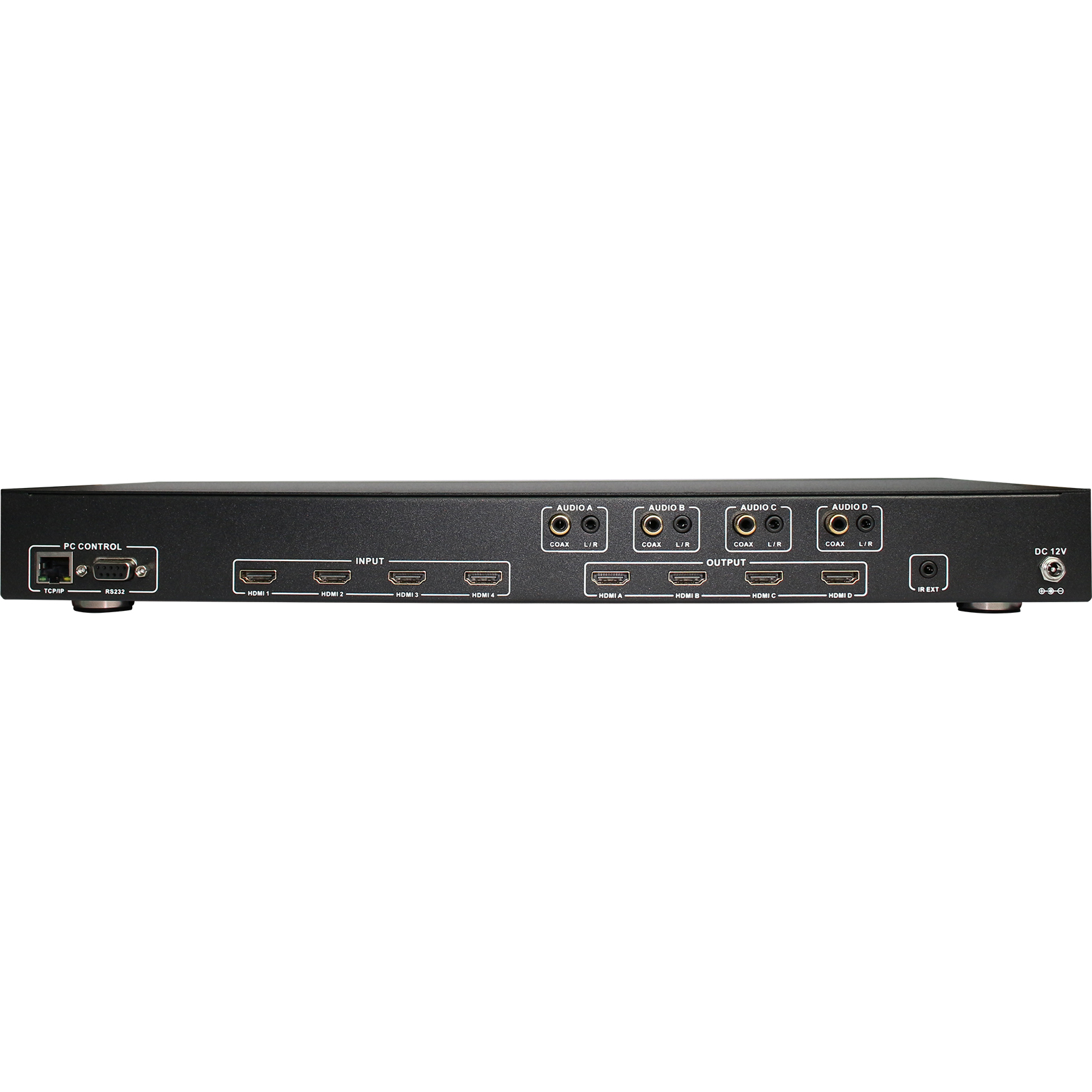

HDMI 4×4 Matrix Switcher HDM-0404B Series

► Item Description:

Hangalaxy’s  HDMI 4x4 HDM-0404B Series matrix switcher features four HDMI inputs and four HDMI outputs. It provides true matrix routing for HDMI signals. It supports the transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or the selection buttons on the front panel. This device supports all HDMI 3D formats.

Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

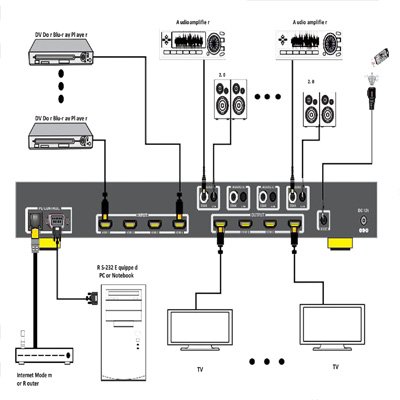

► Basic Installation Diagram:



► Features & Benefits:

1.HDMI2.0, HDCP2.2/HDCP1.4 compliant;

2.Support video format up to 4k2k@60Hz with 24bit  RGB/YCbCr 4:4:4/YCbCr 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;

3.Support color space conversions among RGB, YCbCr4:4:4, YCbCr4:2:2 and xvYCC video formats;

4.Support all HDMI 3D formats up to 2160p@30;

5.Support high resolution VESA mode video format up to QSXGA@60Hz;

6.Support reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio(IEC 61937), DSD, DST, DTS and HBR;

7.Support simultaneous HDMI Coax and L/R audio outputs Support smart EDID management;

8.Support RS-232, remote control, on-panel control and TCP/IP Control.
