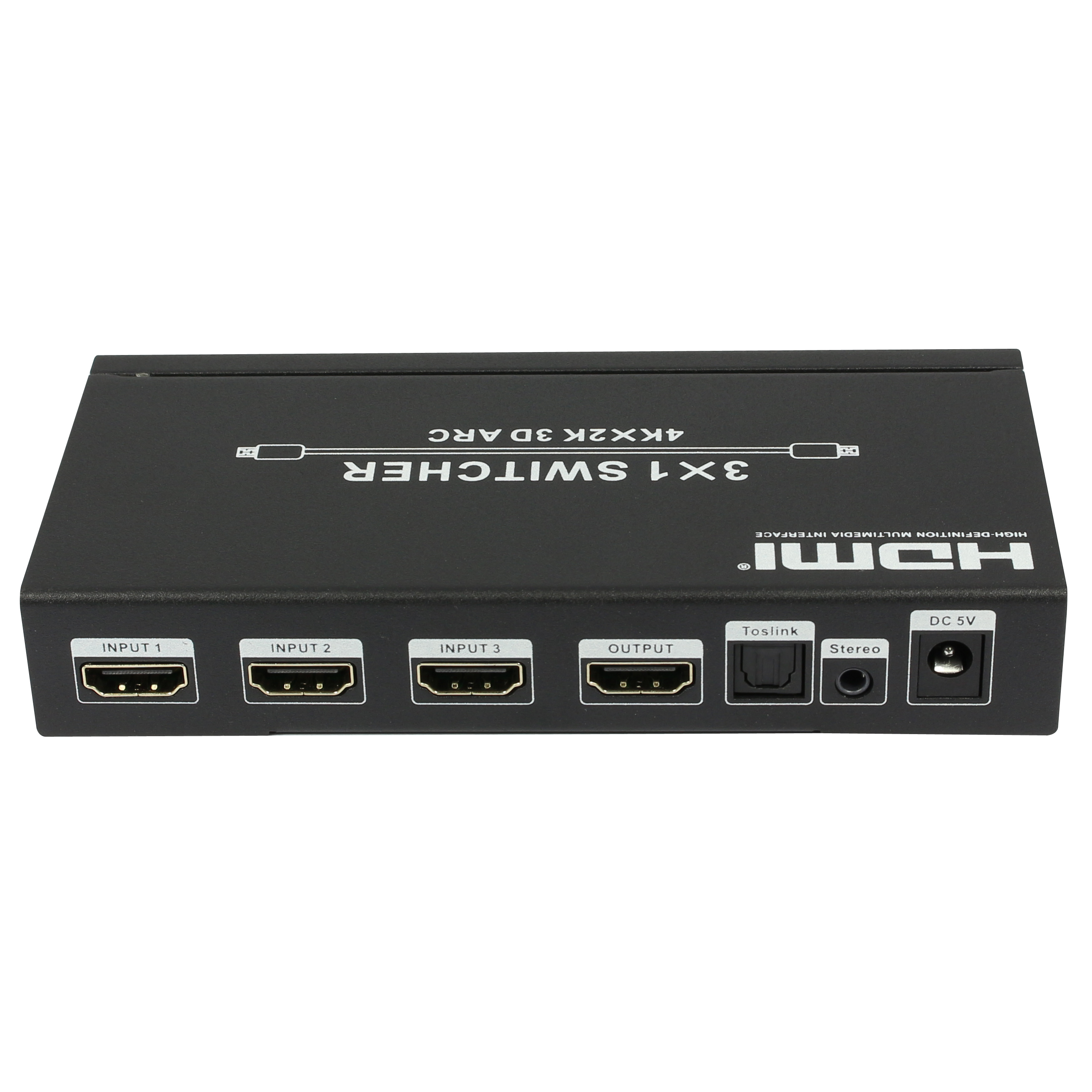

HDMI 3x1 Switcher with ARC HDS-0301V Series

► Item Description:

This is a high performance HDMI Switcher with three HDMI inputs & one output HDMI Switcher, the HDMI Switcher provides an S/PDIF link and earphone to output the HDMI source audio.the S/PDIF link support Audio Return Channel (ARC) from a compaitble ARC TV following the HDMI v1.4 specification.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

► Features & Benefits:

● Supports multiplexed HDMI 3/4-input and 1-output;
● The output port supporting Audio Return Channel (ARC);
● HDMI v1.4 supports:- 4Kx2K@30Hz-Audio Return Channel (ARC)- -3D;
● Deep Color support 36/30/24-bit Audio EDID select fuction;
● Supports CEC bypass on HDMI out;
● Support digital audio format ,DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD;
● Super wideband IR control system, IR transport channel can be forward or backward.

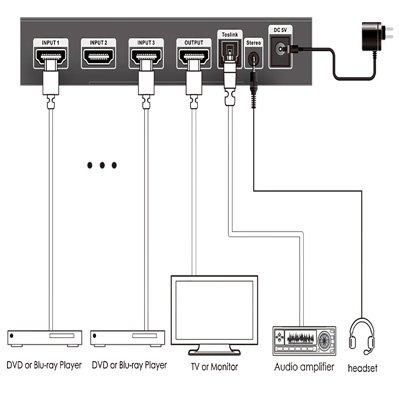

► Connection Diagram:
