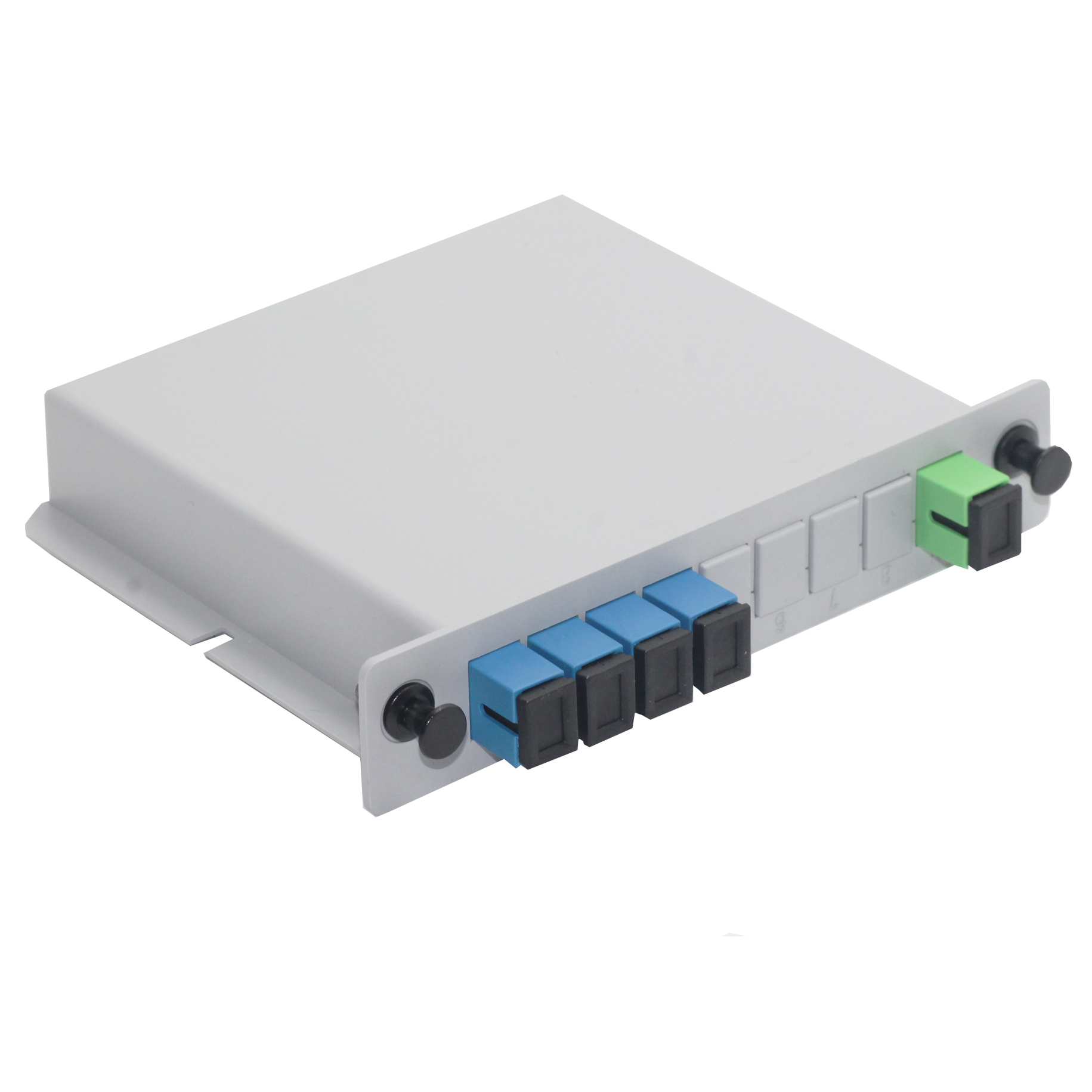

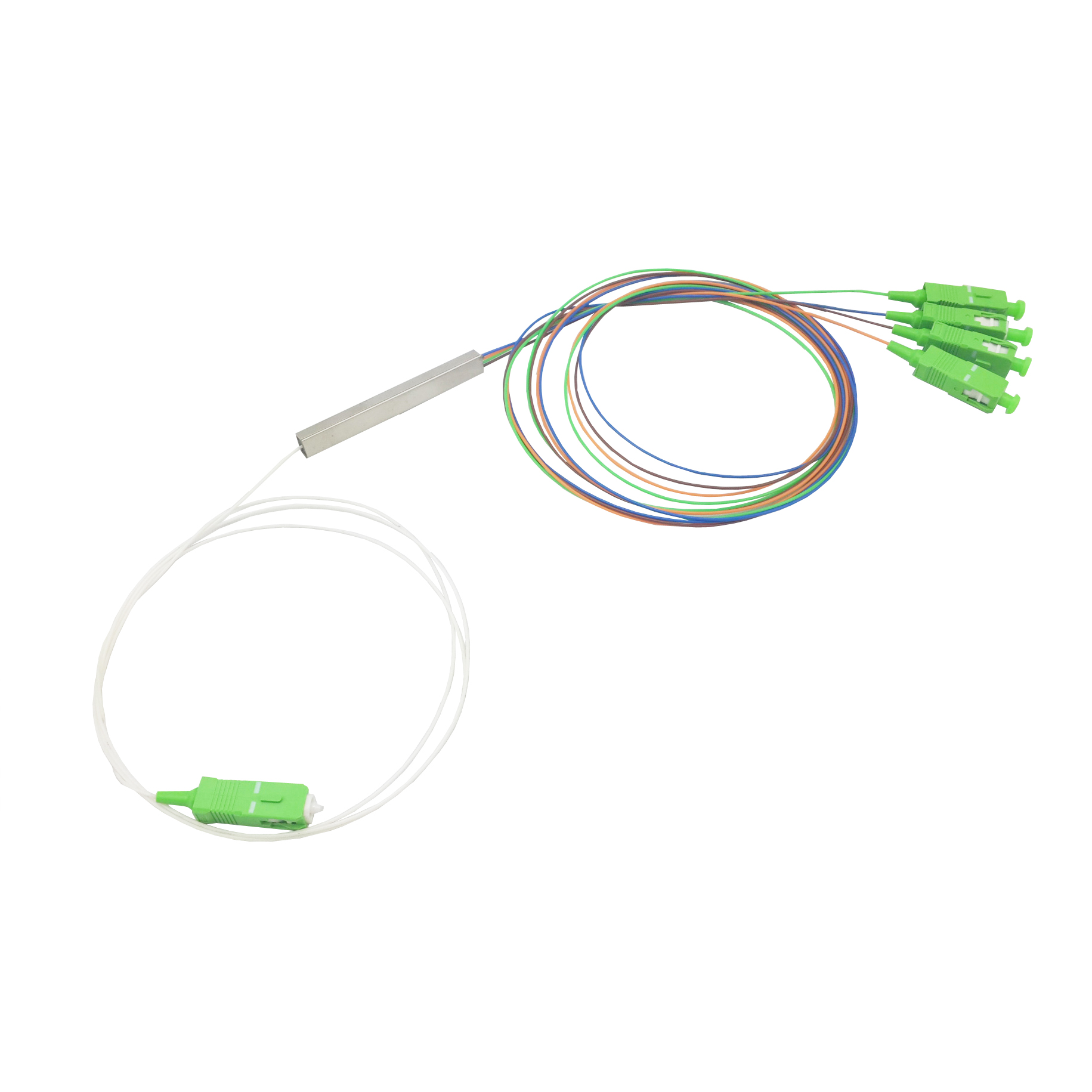

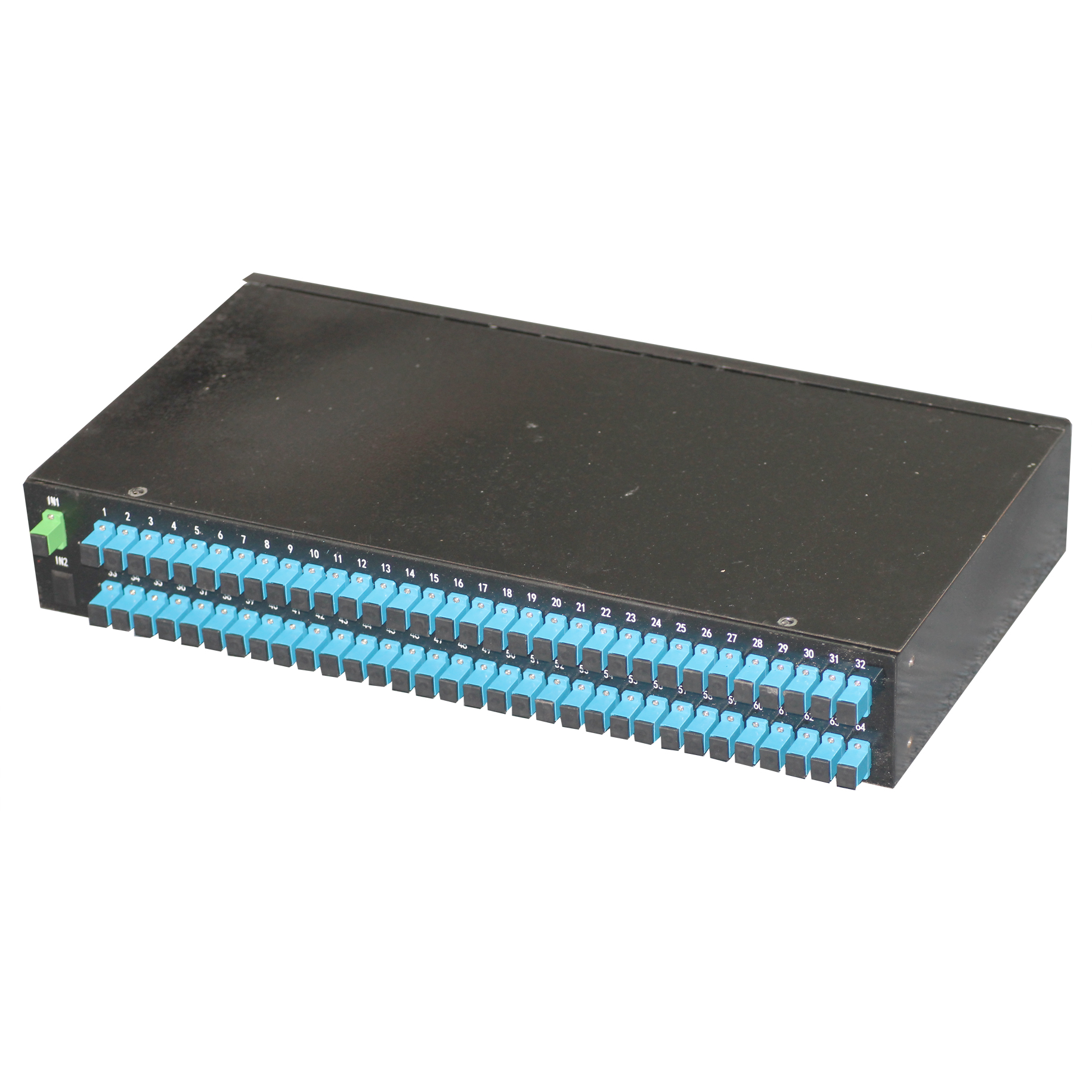

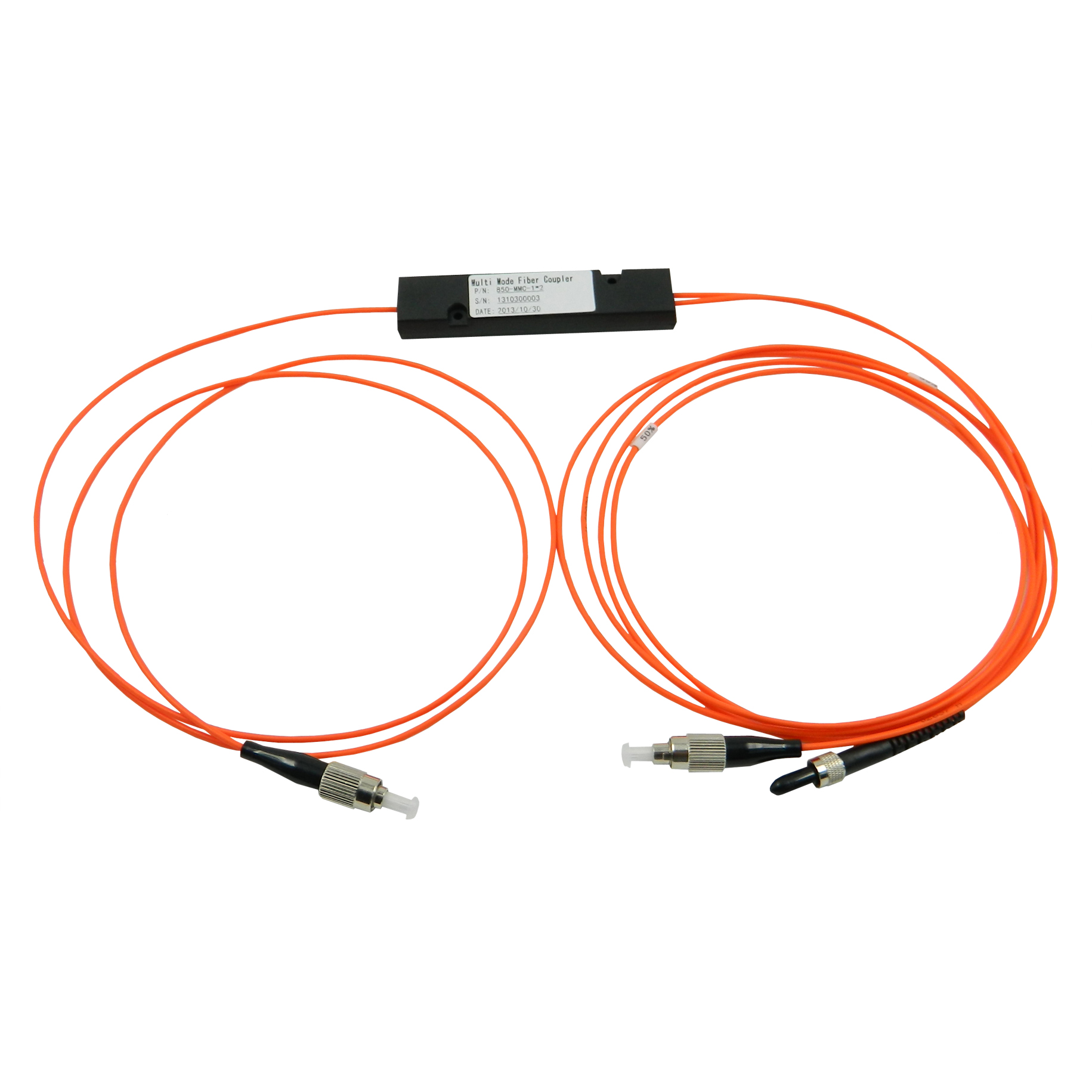

PLC Optical Splitters

► Item Description:

The planar optical waveguide (PLC) splitter is an optical power management device made by using quartz substrate optical waveguide technology, which has the characteristics of small volume, high reliability, wide operating wavelength range and good uniformity of splitting. Widely used in PON networks to complete the splitting of optical signals. Hangalaxy provides 1xN and 2xN full range of PLC splitter products, and customizes specific applications for customers. All products are in compliance with GR-1209-CORE-2001 and GR-1221-CORE-1999 standards.

Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

► Keyed Characteristic:

● High channel counts;

● Low excess loss;

● Low PDL;

● Wide Operatin Wavelength;

● High stability and reliability.

Operating Wavelength (nm)	1260-1650
	Insertion Loss (dB)(P/S)	PDL (dB)	Wavelength Dependent Loss (dB)	Package Size (mm)
1x2	≤3.8/4.0	≤0.2	≤0.3	100 x 80 x 10
1x4	≤7.1/7.3	≤0.2	≤0.3	100 x 80 x 10
1x8	≤10.2/10.5	≤0.2	≤0.3	100 x 80 x 10
1x16	≤13.5/13.7	≤0.2	≤0.5	120 x 80 x 18
1x32	≤16.5/16.9	≤0.3	≤0.4	120 x 80 x 18
1x64	≤20.5/21.0	≤0.35	≤0.5	140 x115 x 18
2x2	≤4.0	≤0.2	≤0.3	100 x 80 x 10
2x4	≤7.6	≤0.2	≤0.3	100 x 80 x 10
2x8	≤11.0	≤0.2	≤0.5	100 x 80 x 10
2x16	≤14.4	≤0.2	≤0.5	120 x 80 x 18
2x32	≤17.5	≤0.35	≤0.5	120x80x18
2x64	≤21.0	≤0.35	≤0.5	140x115x18
Directivity (dB)	≥55
Return Loss(dB)	≥55
Operating Temperature (℃)	-40~+85
Storage Temperature(℃)	-40~+85
Fiber Type	Cornig SMF-28e, G652 / G657A
Notes: Other specifications can be made on customer request. 1.The above values do not include the fiber connector loss. 2.Each connector will increase in the optical path.
