Mini - DVI Fiber Extender HDDVI / M4 Series（4 x LC）

► Item Description:

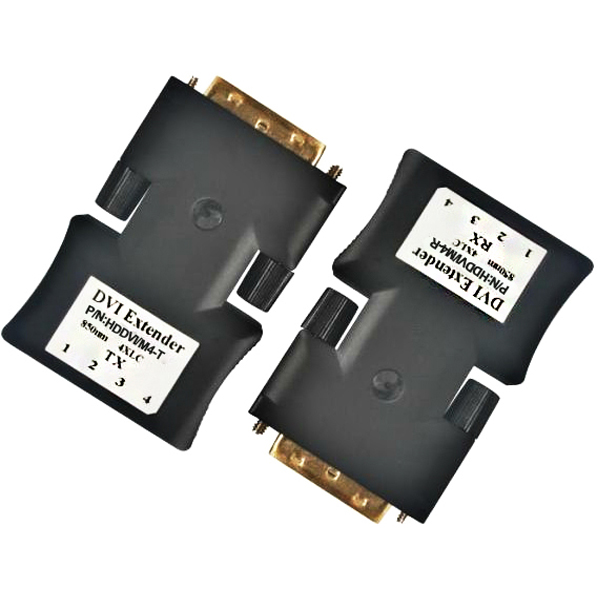

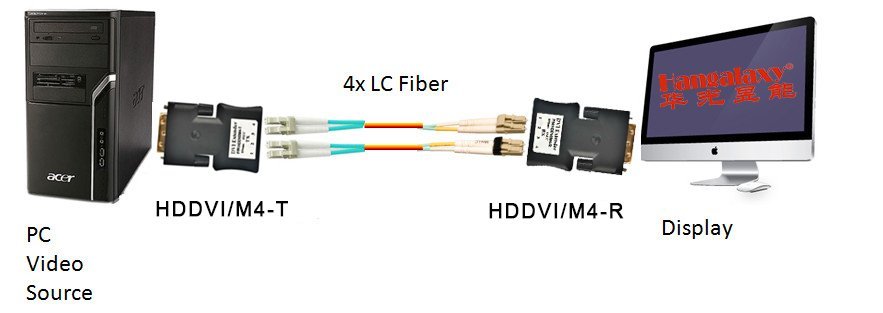

Hangalaxy's 4xLC HDDVI/M4 Series DVI optical extender consists of a transmitter and a receiver, each of which has 4 LC connectors and a 20-pins DVI–D plug. Users could decide extension length at their discretion by choosing the length of fibre-optic cables with LC ferrules at the ends. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected multi-mode glass fibers, or, 50/125um or 62.5/125um A transmitter, 4 VCSEL array inside and a receiver, 4 Pin-PDs array inside has a capability to transmit WUXGA (1920X1200) graphic signals with 60Hz refresh rate. At such data bandwidth, this module can extend up to 1,640 feet (500 meters) much over the limits of copper wire extension, without any distribution amplifier or repeater.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

► Features / Benefits:

● Extends all VESA resolution up to WUXGA (1920 X 1200) 60Hz;
● Distance is up to 500 meters  (1,640 feet);
● Detachable feature with  4x LC multi-mode fibers;
● Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection;
● The modules are compact enough to directly plug to graphic sources and displays by adopting DVI plugs;
● Includes two (2) +5V DC power adapters for the transmitter and receiver;
● Complies with Class 1 Laser eye safety in compliance with FDA/CDRH and IEC 60825-1;
● Certifies FCC and CE standards for EMI/RFI emission;
● Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present.
