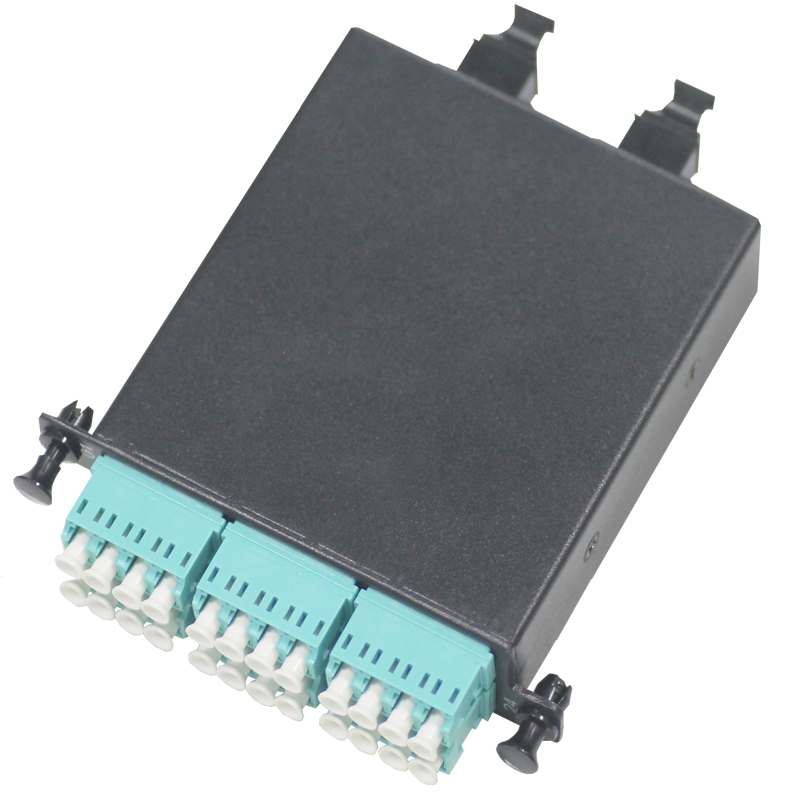

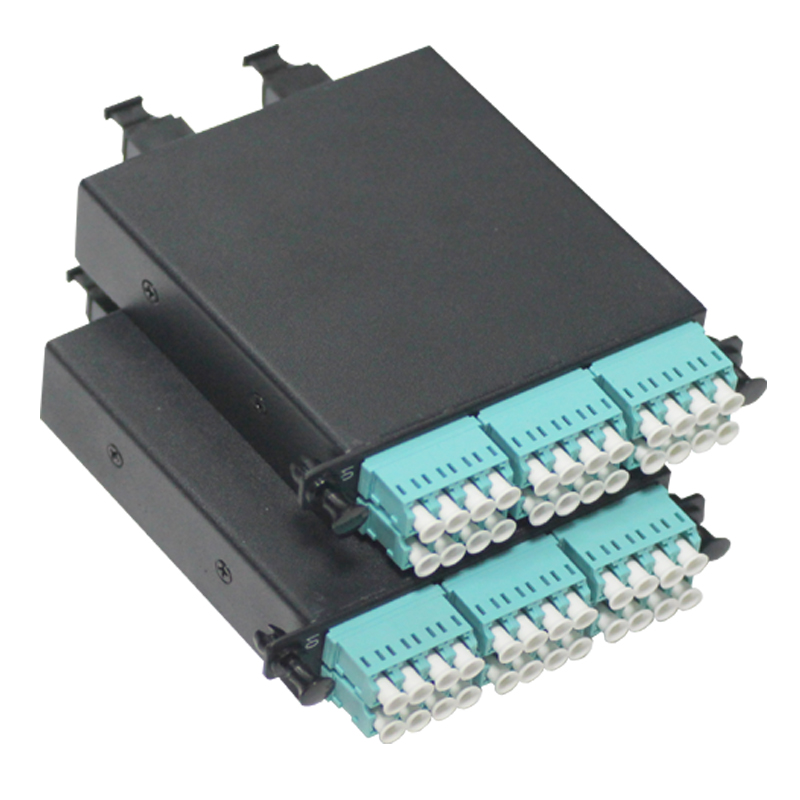

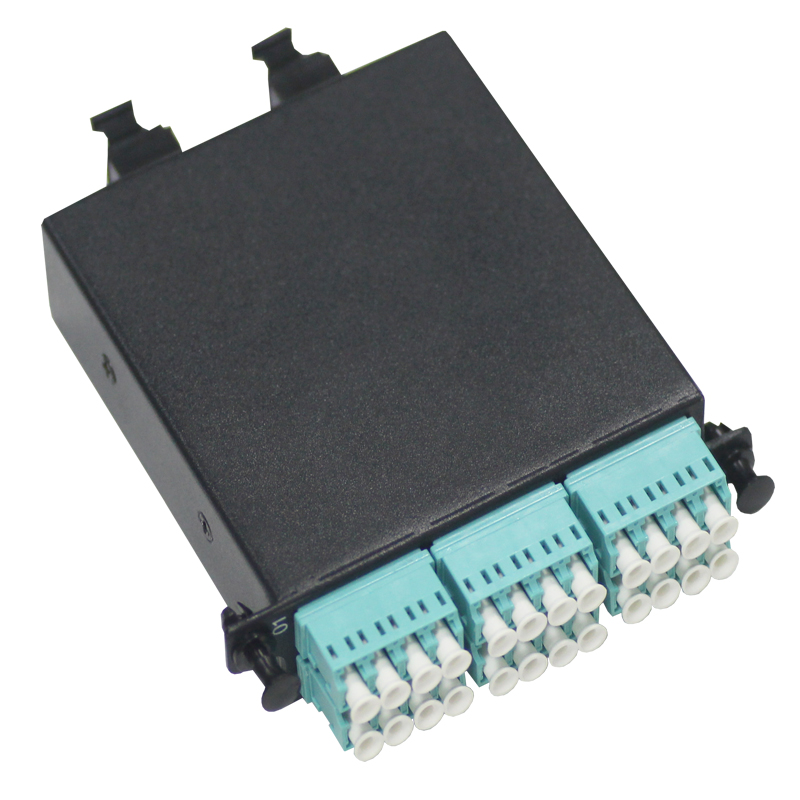

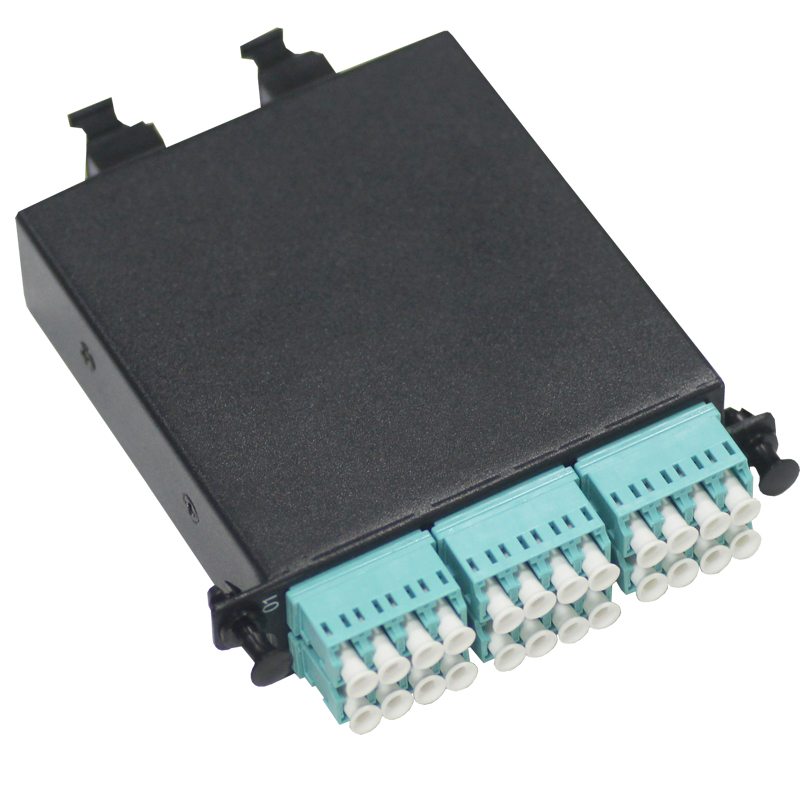

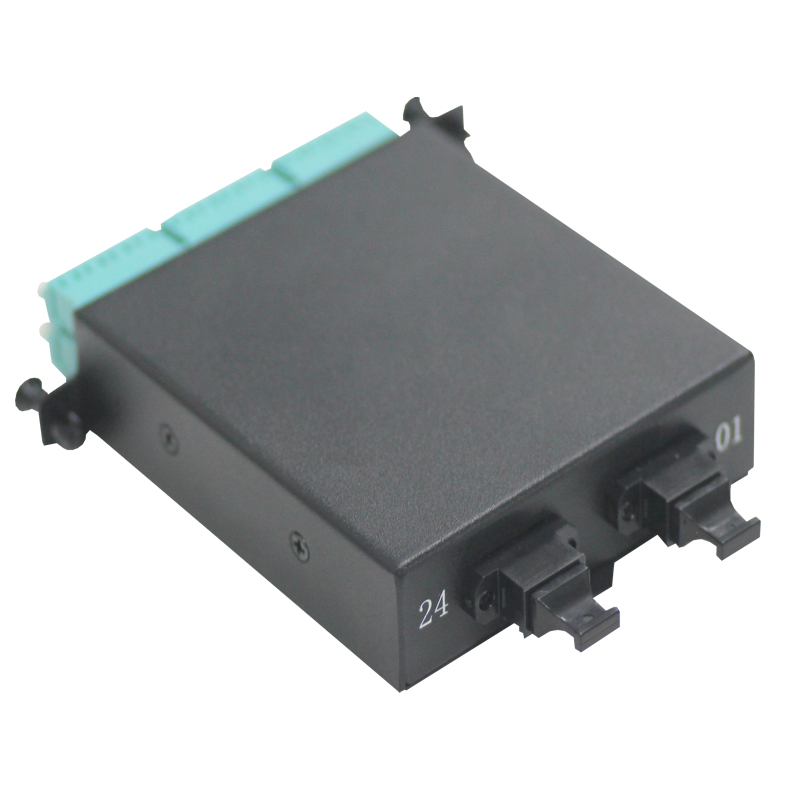

24F MPO-LC OM3 Modular Cassette

Hangalaxy this kind of MPO / MTP® module box is pre-termianted to increase the installation speed. The module box and the external MPO / MTP® port can be easily and efficiently connected to the main line. A single MPO / MTP® provides instant connection to 24 fibers.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

Keyed Characteristics

• 12, 24-core LC and 12-core SC single-core fiber;
• LC, SC can be used with low loss connectors;
• Common and elite MTP® / MPO connectors;
• 12, 24-core MTP / MTP® connector;
• It is made of 1.2mm cold-rolled steel plate with black fine sand on the surface;
• The fiber types are SM (G657A1), MM (OM3/OM4).

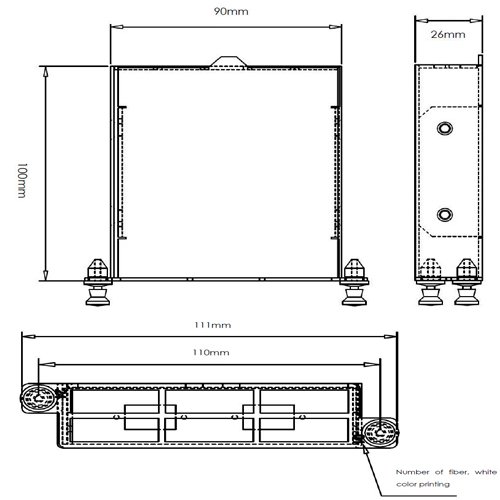

Mechanical Drawing
