144 Cores 19'' 1RU MTP®/MPO-LC Patch Panel

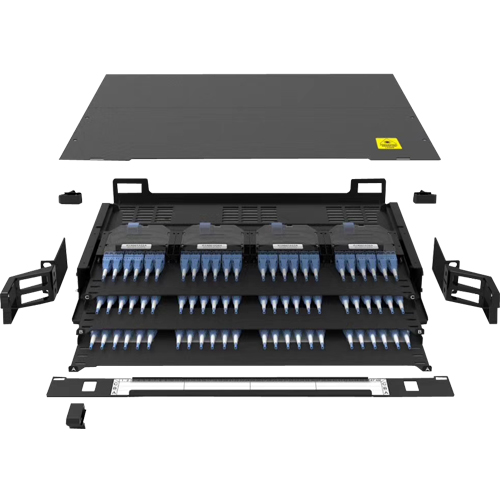

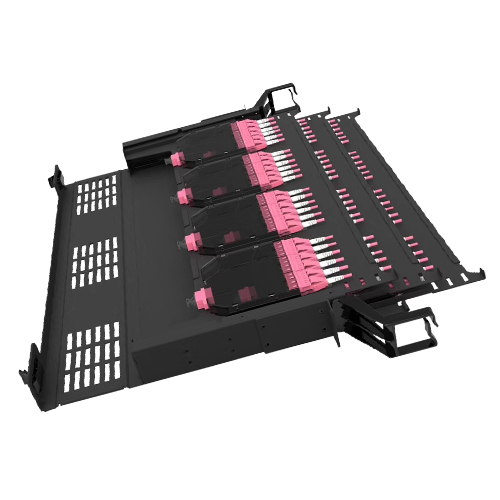

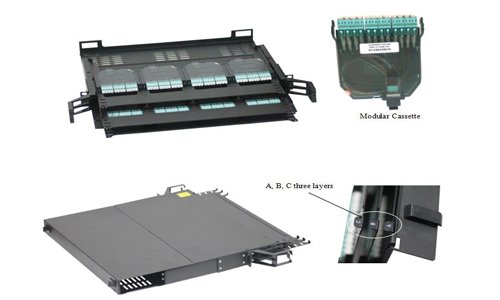

This kind of MPO/MTP® pre-terminated ultra-high density wiring box, 19 inches, 1U height reaches 144 cores, can be applied to data center, computer room, computer center and other high-density wiring places, front and rear removable upper cover, pull-out double the use of guide rails, detachable front bezels, ABS lightweight modular boxes, etc., makes the NT989 easy to use in high-density scenes, whether in cable or cable. It has A, B, C three layers of trays, each with independent aluminum guide rails and a sliding distance of 110mm. 4 x 12F MPO/MTP® module boxes can be installed in each tray, and each module box can be installed with 6 x DLC adapters to achieve 12 cores. Each module box has a separate ABS rail that can be easily installed without restrictions.
Enquiry

AdvantagePurposeProduct SpecificationScheme comparison

Keyed Characteristics

1. Ultra-high density wiring application scenario;
2. Standard 19-inch width;
3. Ultra high density reaches 1U 144 cores;
4. Double rail design for easy installation and maintenance;
5. Lightweight ABS material MPO/MTP module box;
6. Spray surface treatment process;
7. Customized color and silk screen LOGO.
